1-Channel Power Unit, digital, 70 W
-

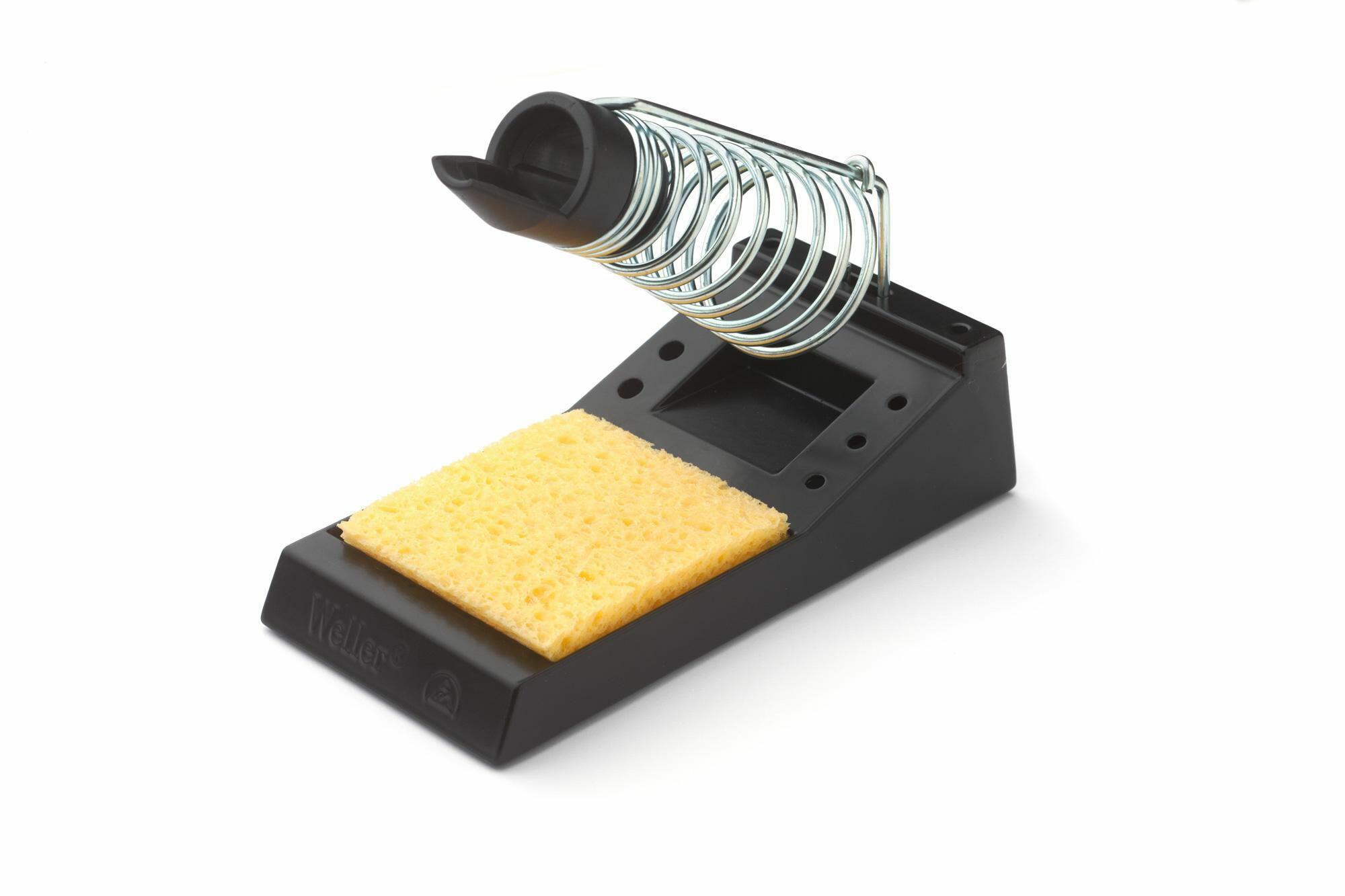

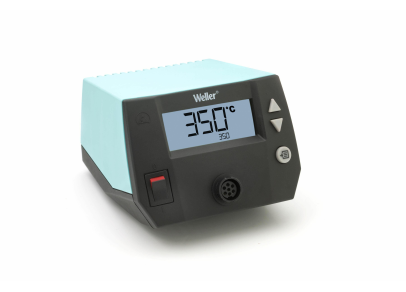

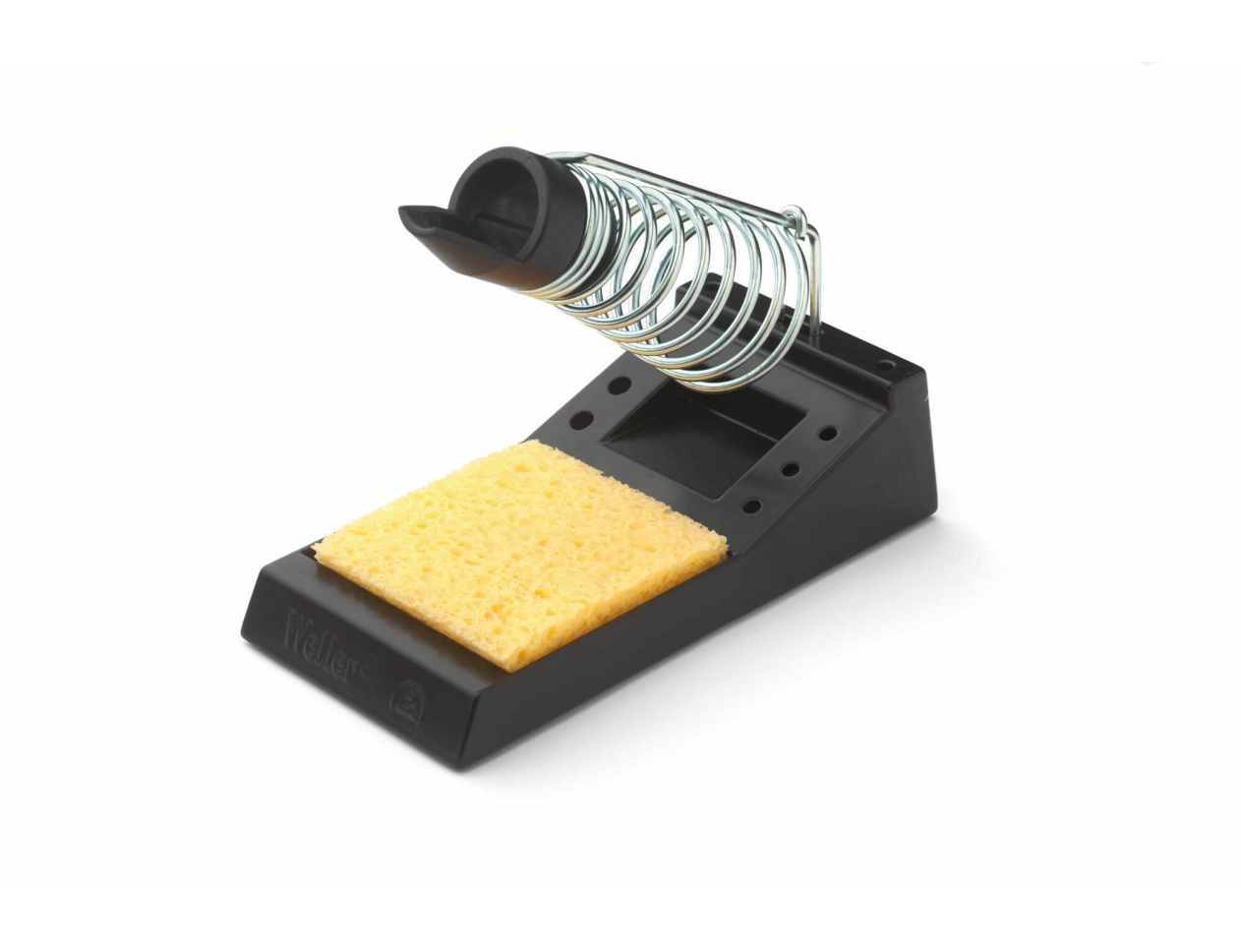

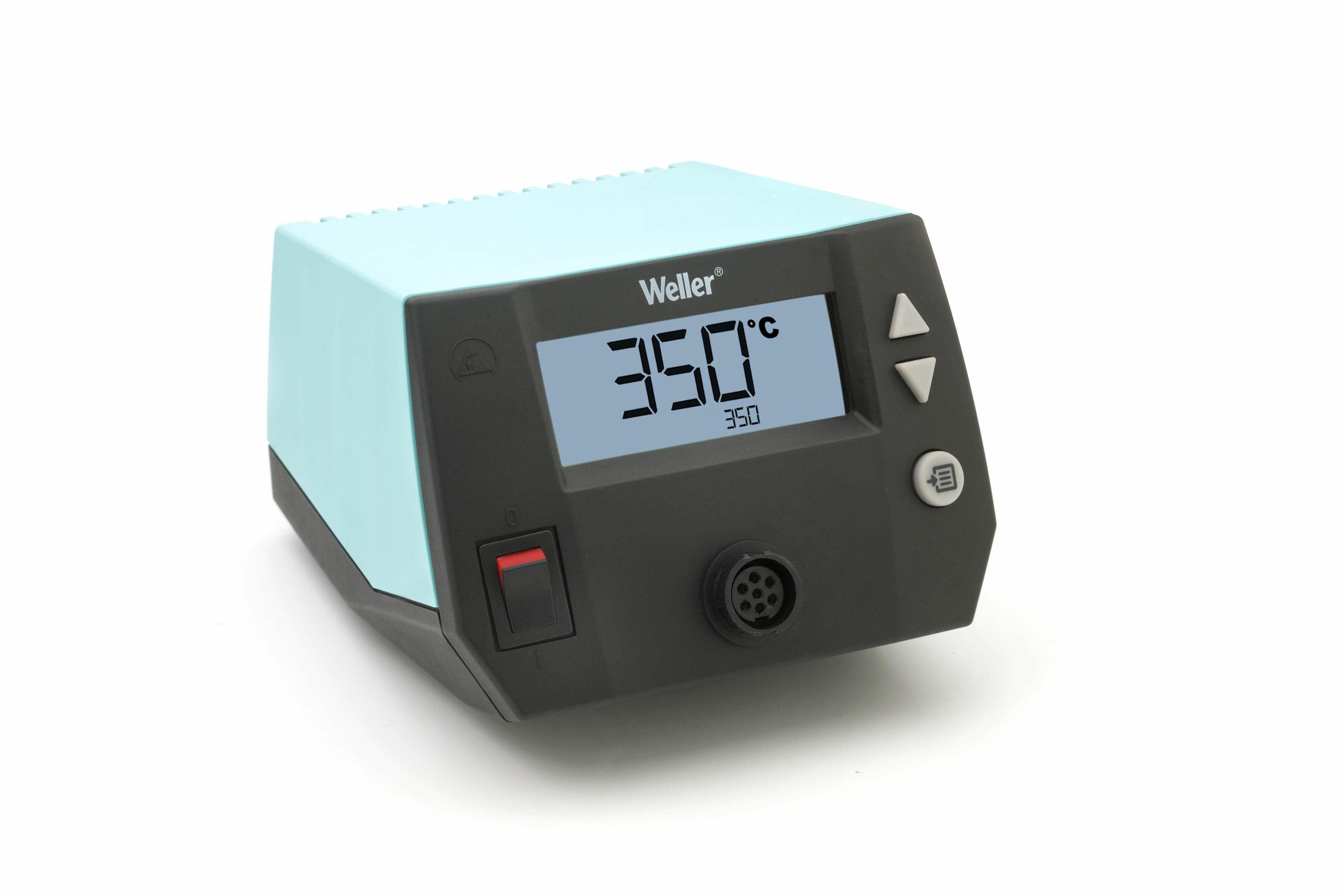

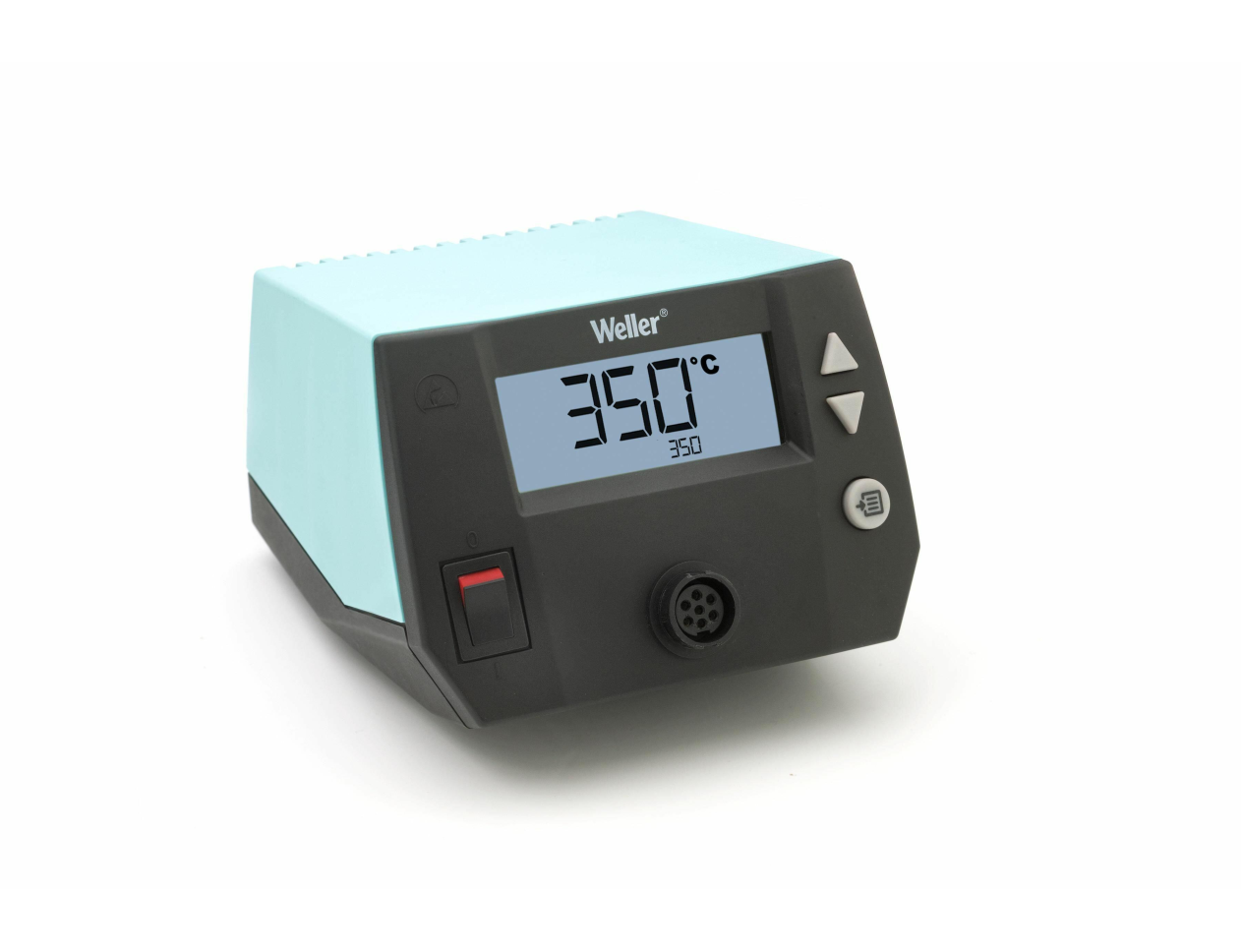

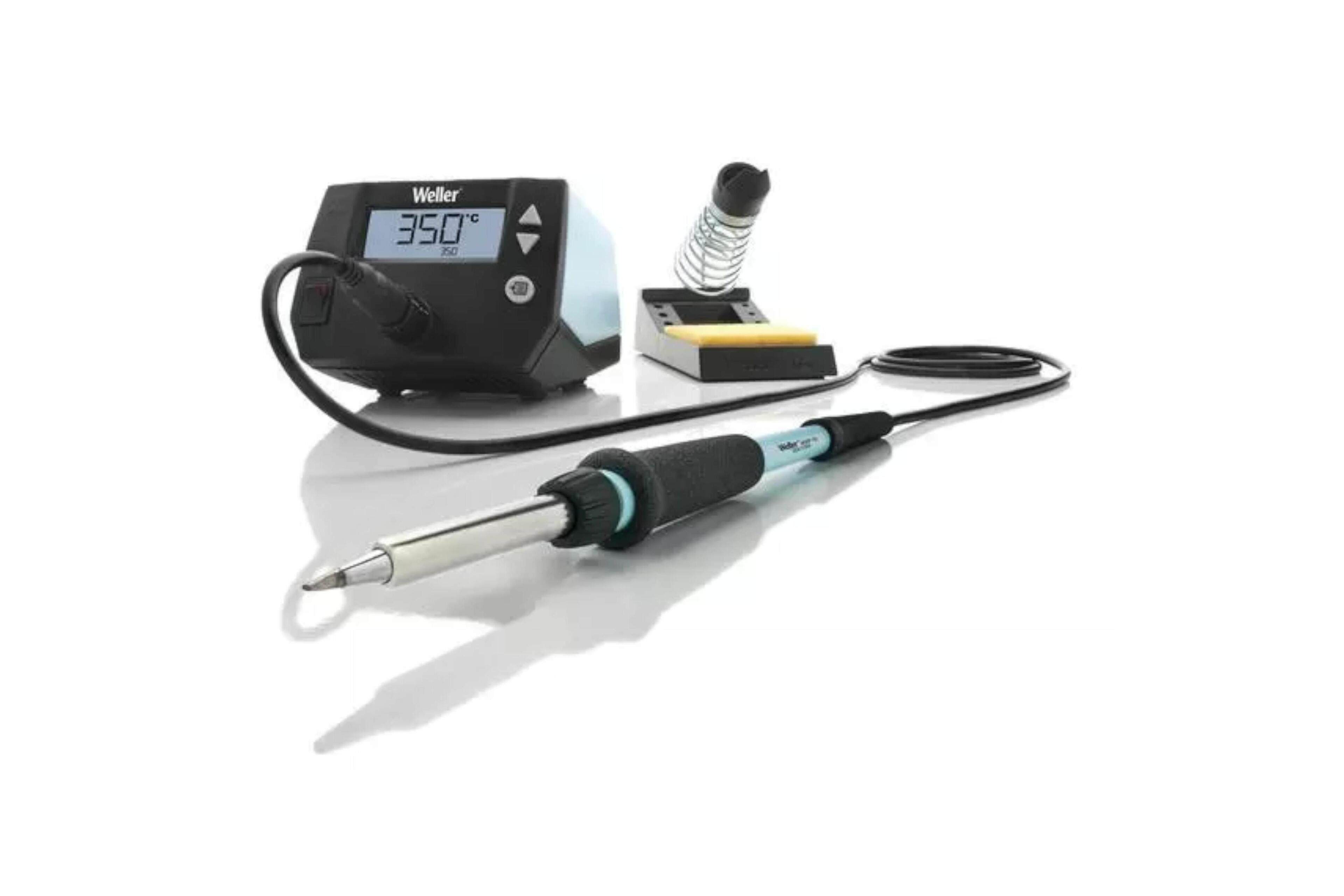

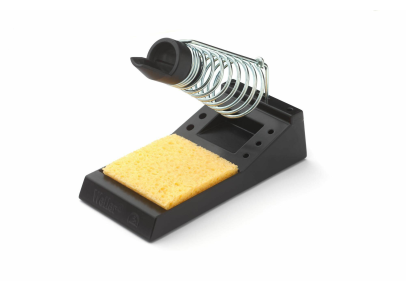

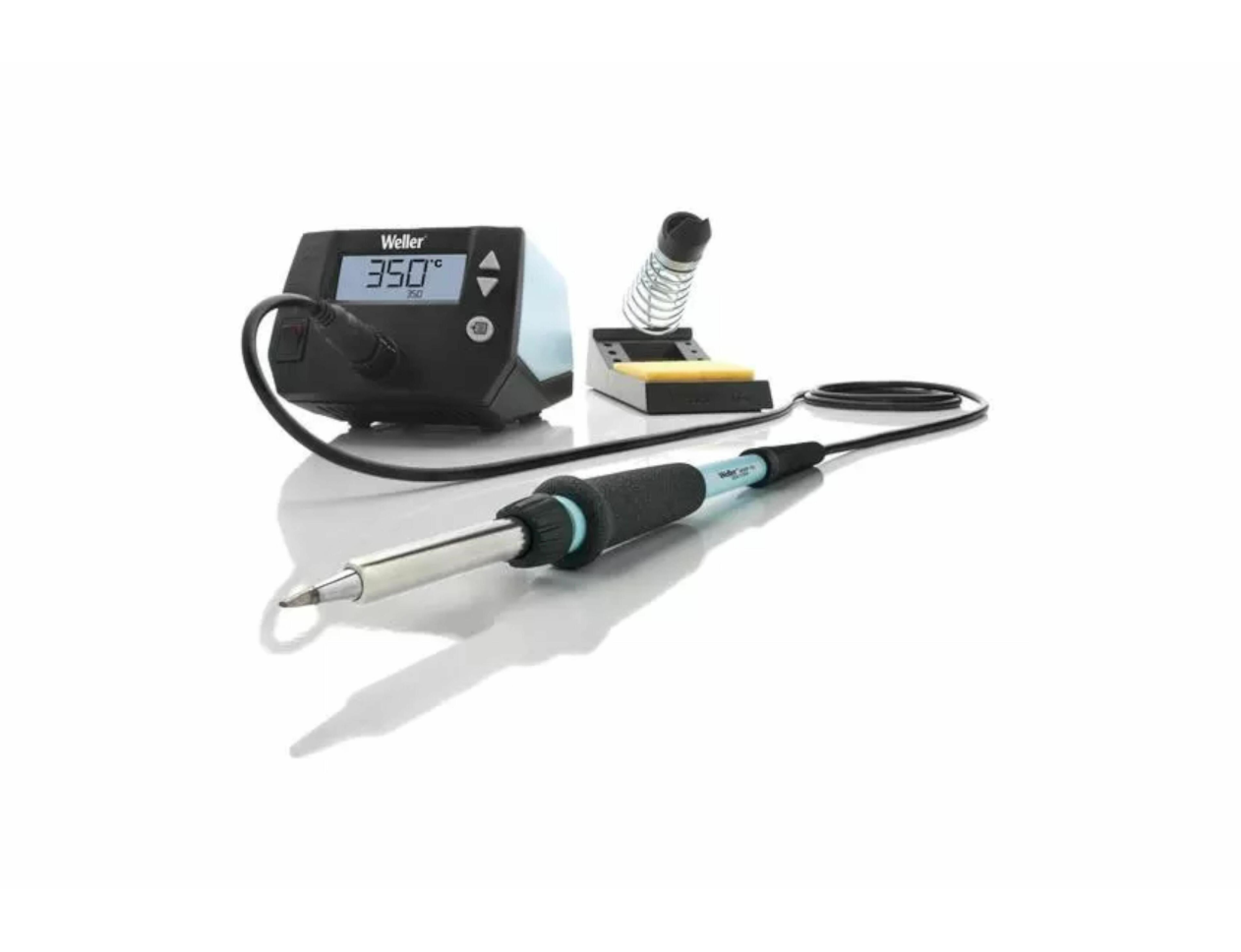

Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70
-
70 W solder iron with ergonomic handle and providing toolless tip change
-
ESD safe station, iron and heat-resistant silicon cable for safe handling
-
Using ET soldering tips
-
Standby mode and auto setback conserves energy, protects equipment
-
Password-protected to preserve settings
-
Replacement for 4ETH, 4ETK, 4ETO, 4ETS necessary. For WEP 70 4ETHL, 4ETKL, 4EKOL and 4ETSL must be used.
-
Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool.
| Height | 98mm |
| Length | 150mm |
| Dimensions L x W x H | 150.0 x 120.0 x 98.0mm |
| Approximate Heating Time (50–350 °C/120–660 °F) | 28 sec |
| ESD Safe | Yes |
| Number of Channels | 1 |
| Power | 85 W |
| Temperature Accuracy °C | ± 5 °C |
| Temperature Accuracy °F | ±9 °F |
| Temperature Range (Depends on Tool) | Adjustable from 100°C - 450°C (200°F - 850°F) |
| Temperature Range °C | 100 - 450 °C |
| Temperature Range °F | 200 - 850 °F |
| Temperature Stability °C | ±6 °C |
| Temperature Stability °F | ±10 °F |
| Tip Type | ET |
| UPC | 4003019439973 |
| Voltage | 230 V |
| Weight (Catalog) | 1.40 kg |
