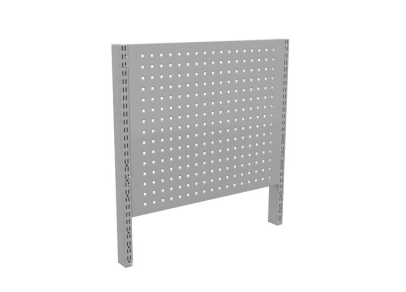

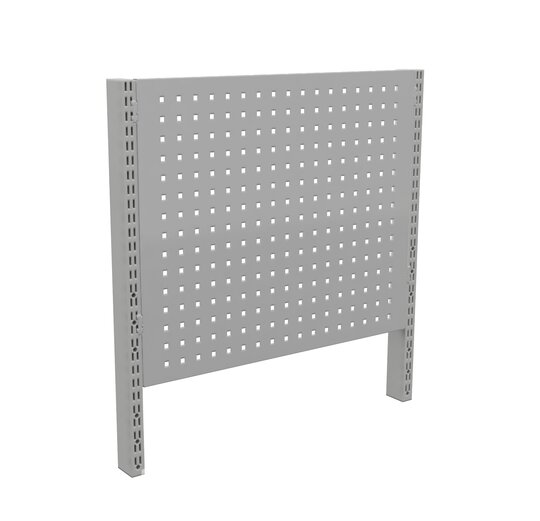

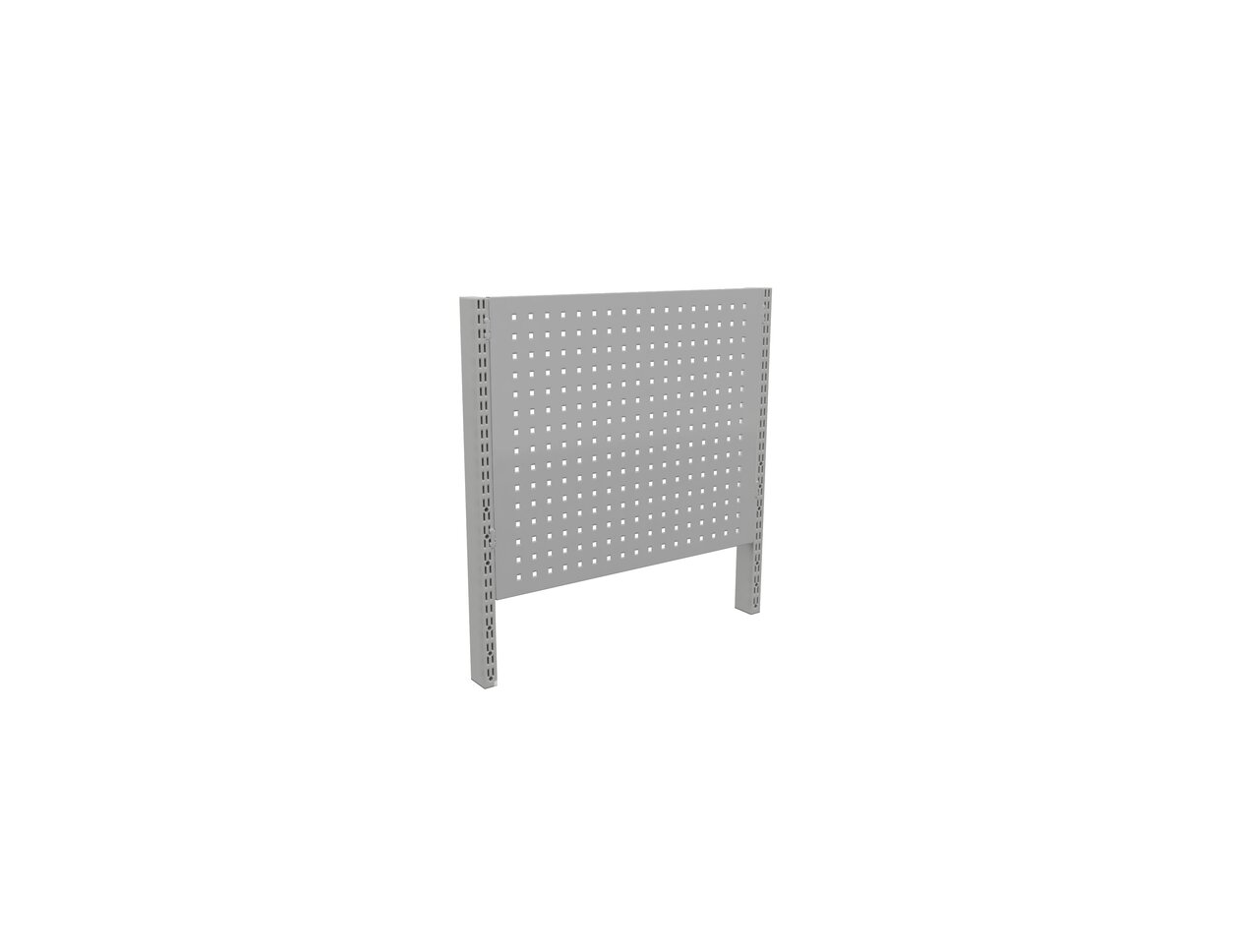

Perforated back panel M1000, 968x612, Grey

Product code 861538-49
Width mm 968
Depth mm 16
Height mm 612
Package width mm 740
Package depth mm 990
Package height mm 20
Please note that the data is valid at the time stamp below and is subject to change
Saved from www.treston.com on 18.9.2024
Package weight kg 4
Adjustment method Upright
Max load kg 50
Quantity per package 1
ESD Yes
RAL code RAL7035
Color name Light grey
Available for the following
products
Suitable for module M1000
Frame material Epoxy powder-coated steel
Warranty years 10
Other The size of the perforation is 9x9 mm, center to center 38mm.
Fastened to the upright tubes
