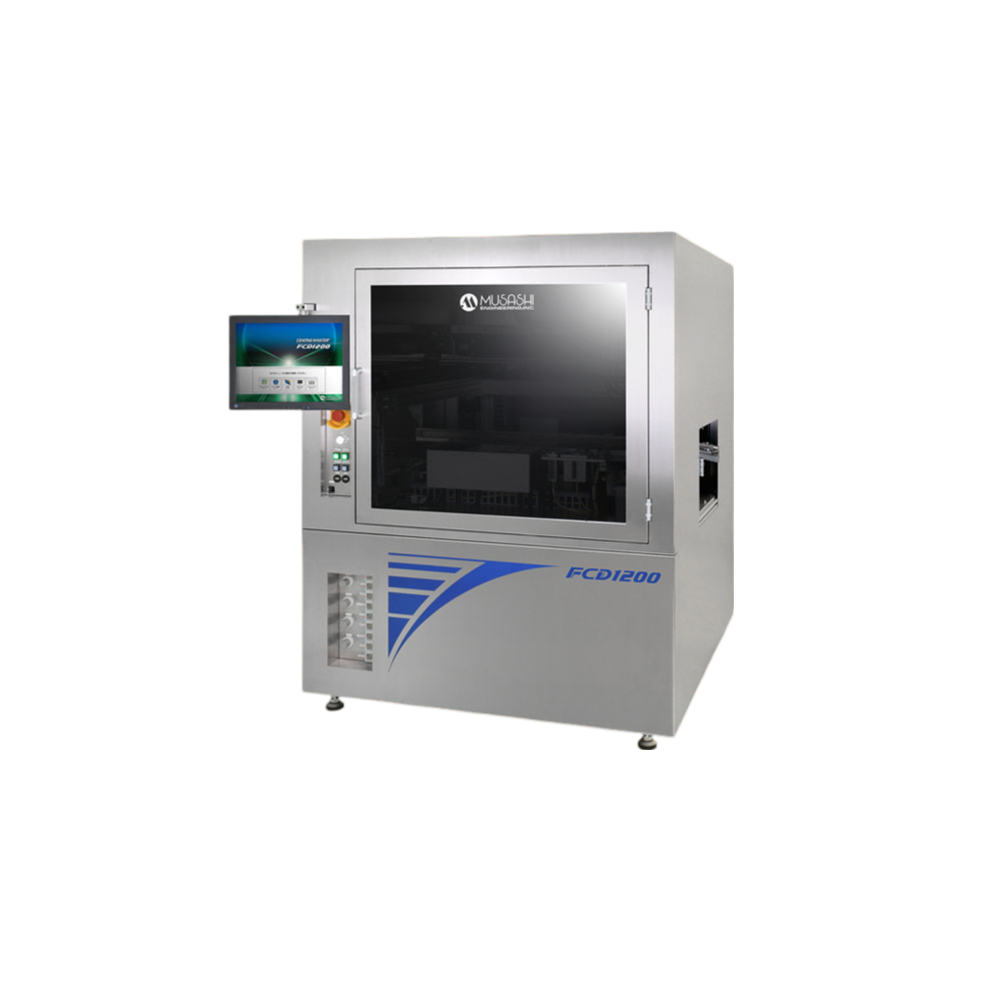

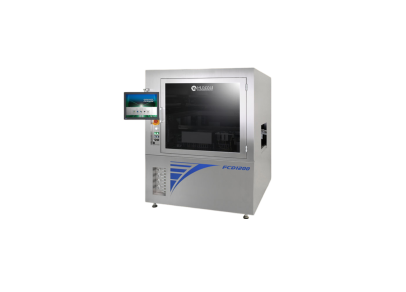

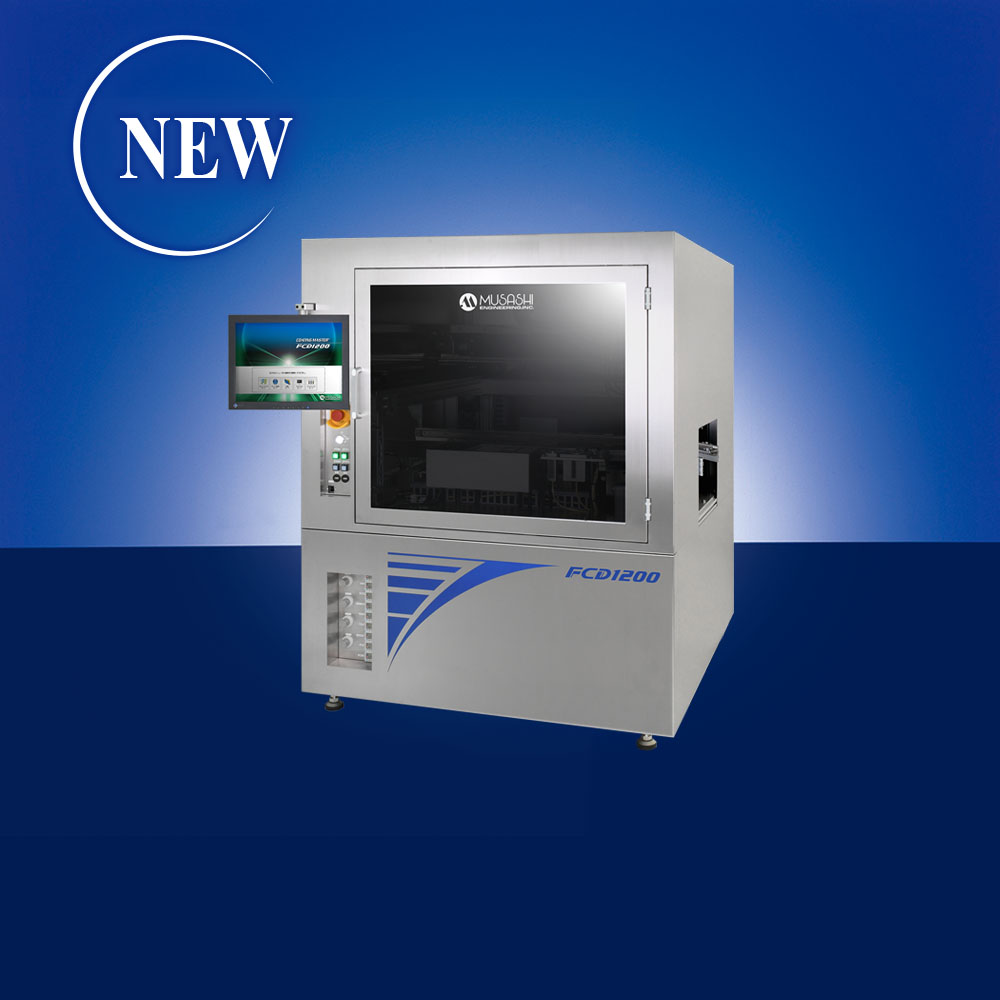

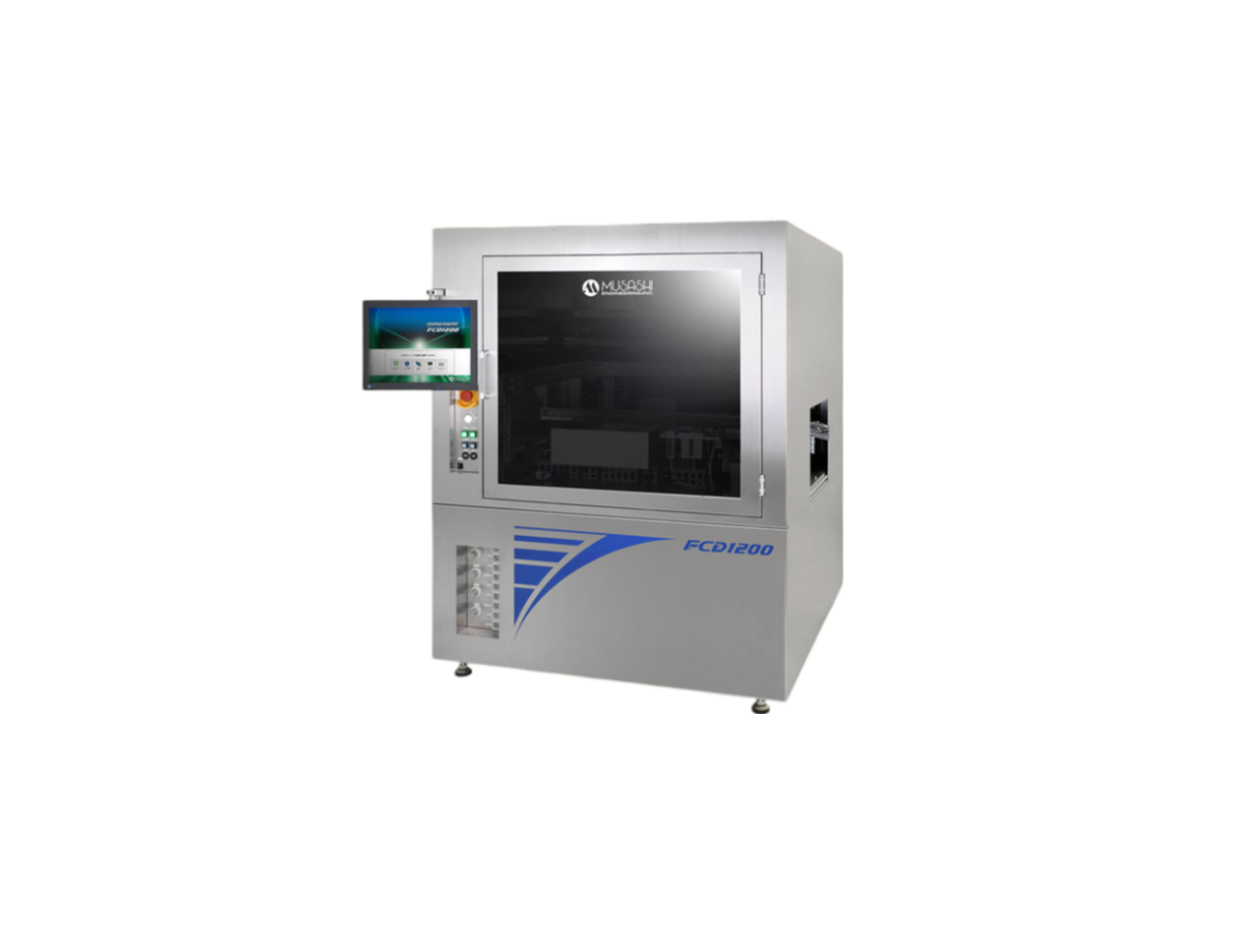

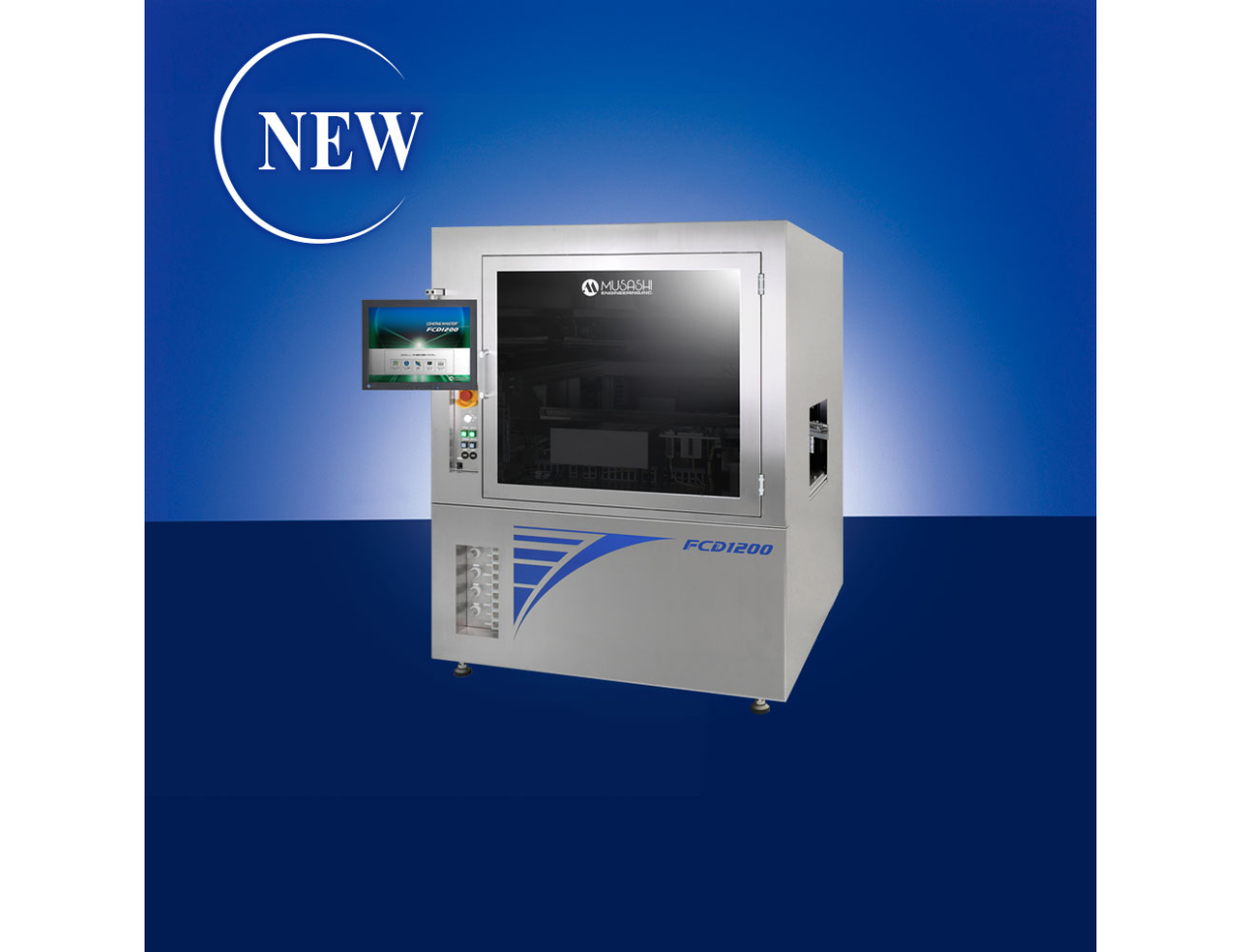

MUSASHI Coating Master FCD1200

The MUSASHI FCD1200 is an advanced automatic conformal coating system designed for precision, consistency, and efficiency. Featuring intelligent automation and real-time process monitoring, this system enhances coating accuracy and streamlines production workflows.

Key Features & Functions:

• Full-Auto Characterization – Automatically optimizes settings for precise coating application.
• Tilt Head Function – Allows flexible coating angles for complex board designs.
• Image Teaching Program Editor – Simplifies programming with an intuitive visual interface.
• Fiducial Recognition System – Ensures accurate alignment with XY and Theta offset correction while detecting PCB placement errors.
• Material Circulation & Temperature Control – Maintains optimal conditions for solvent-based coatings.
• Pressure Tank & Bladder Bag Compatibility – Supports solvent-free coatings, with integrated loadcell detection for material monitoring.
• Exhaust Airflow Monitoring – Ensures a stable coating environment.

Automated Precision Coating Enhancements:

• Automatic Fan Width Check & Adjustment – Ensures consistent coating patterns with real-time width monitoring.
• JET Dot/Stream Detection – Verifies coating quality using an integrated side-camera system.
• Auto-Solvent Filling System – Monitors solvent levels and refills automatically.
• Auto-Conveyor Width Adjustment – Adapts seamlessly to different board sizes.
• Barcode Reading System – Enables efficient tracking and process automation.
