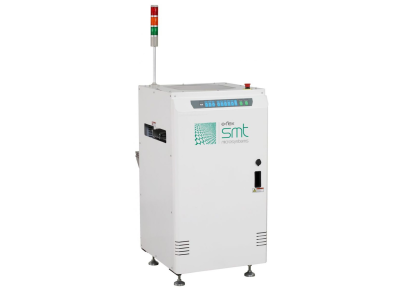

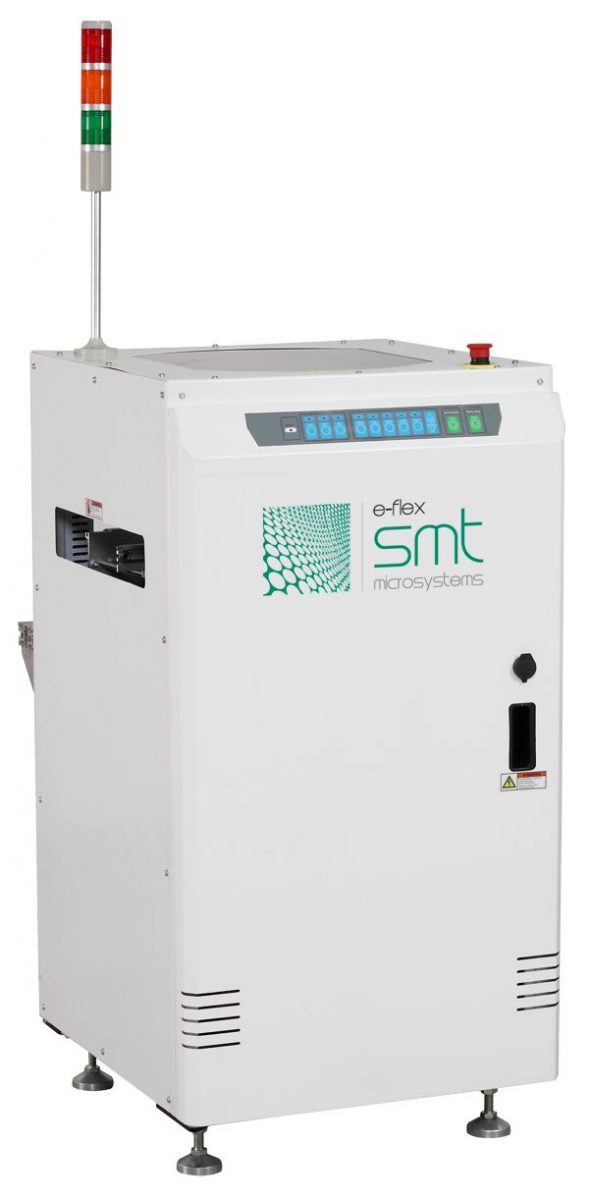

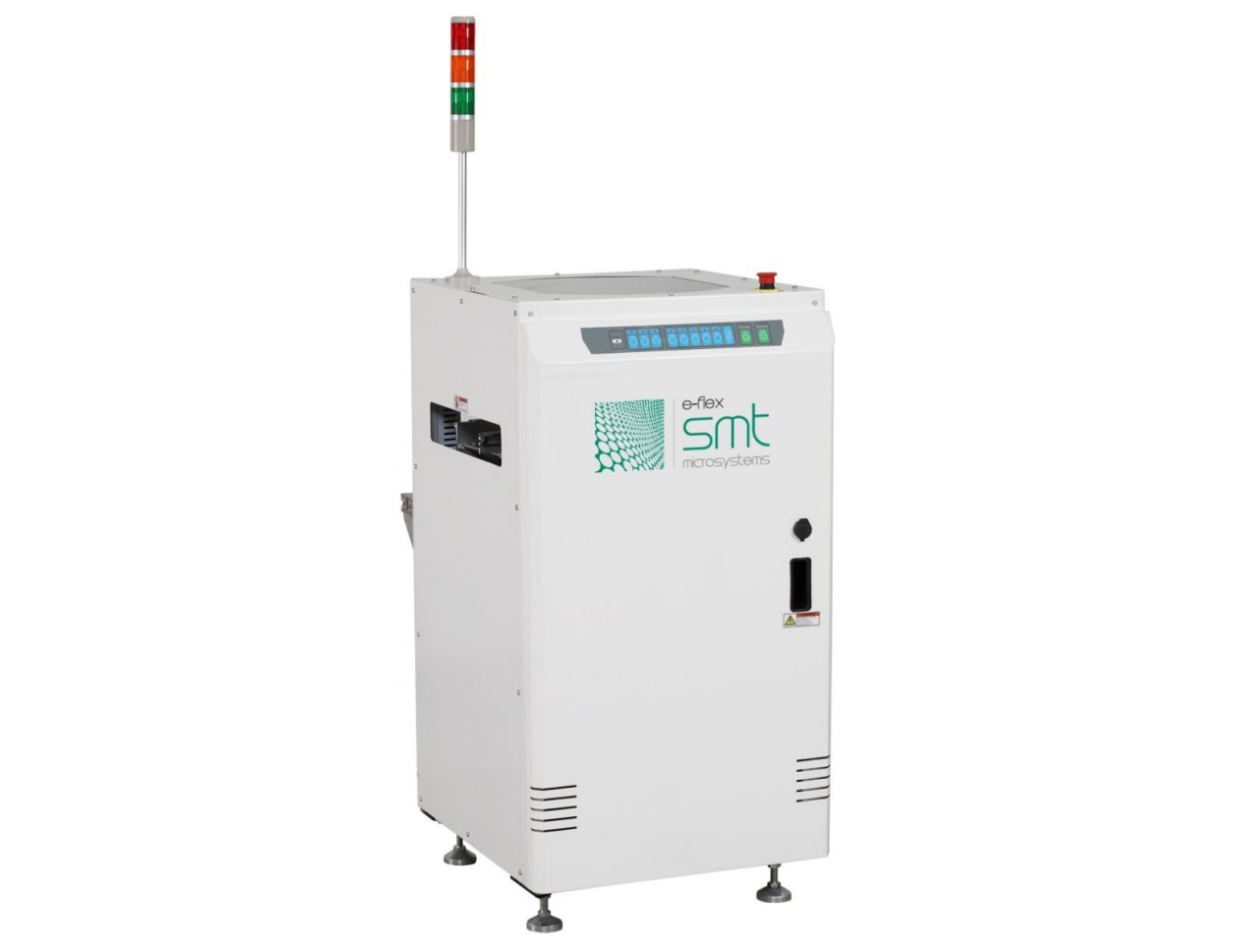

e-flex PCB inverter
Our inverters are designed to invert (flip) boards and to feed them into the production line from an integral flat-belt-type conveyor. Subsequent inversions continue from the last unloading position in order to reduce cycle time. Includes 2 extra SMEMA plugs to allow communication with conformal coating machines and laser marking machines. Four different inversion modes: pass-through, normal inversion, double upstream inversion and double downstream inversion.
| Model | WHM-200SD3BM | WHM-200SD3BXL |
| Machine size (mm) | (L)504x(W)869x(H)1250 | (L)655x(W)1050x(H)1250 |
| PCB size (mm) | 50×50~(L)330x(W)250 | 50×50~(L)530x(W)460 |
| Conveyor direction | Left to right or right to left (selectable by software) | |
| Conveyor height | 950+/-30mm | |
| Power | AC220V/50-60Hz | |
| Air supply | 4-6 bar | |
| Air consumption | 1.1 l/min max | |
| Control system | Panasonic PLC and Sick sensors | |
| Control panel | Membrane button front panel | |
| Transport belt | 3mm ESD flat belt | |
| SMEMA | SMEMA compatible by default | |
| Net weight | 364 Kg | 384 Kg |
| Gross weight | 444 Kg | 464 Kg |
