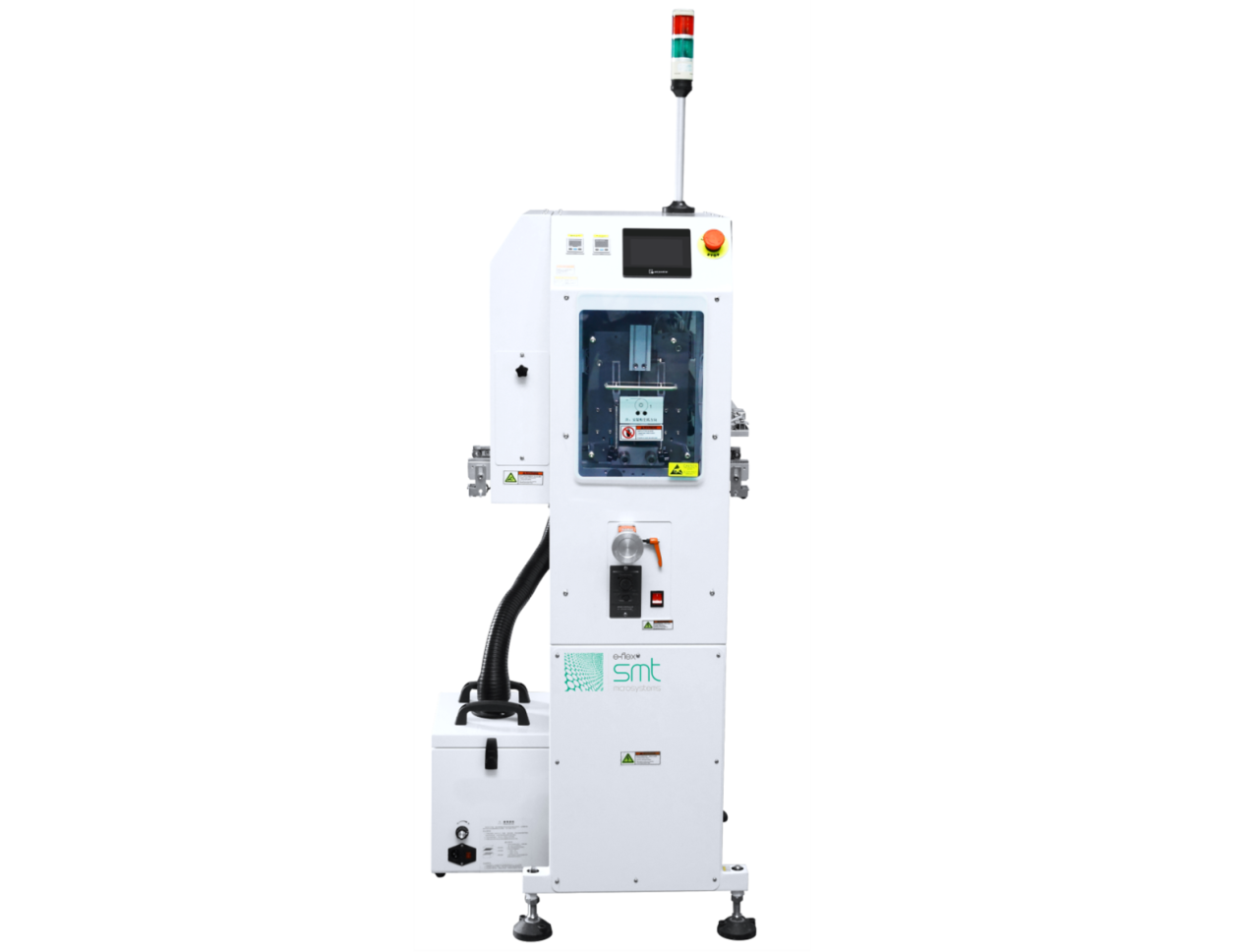

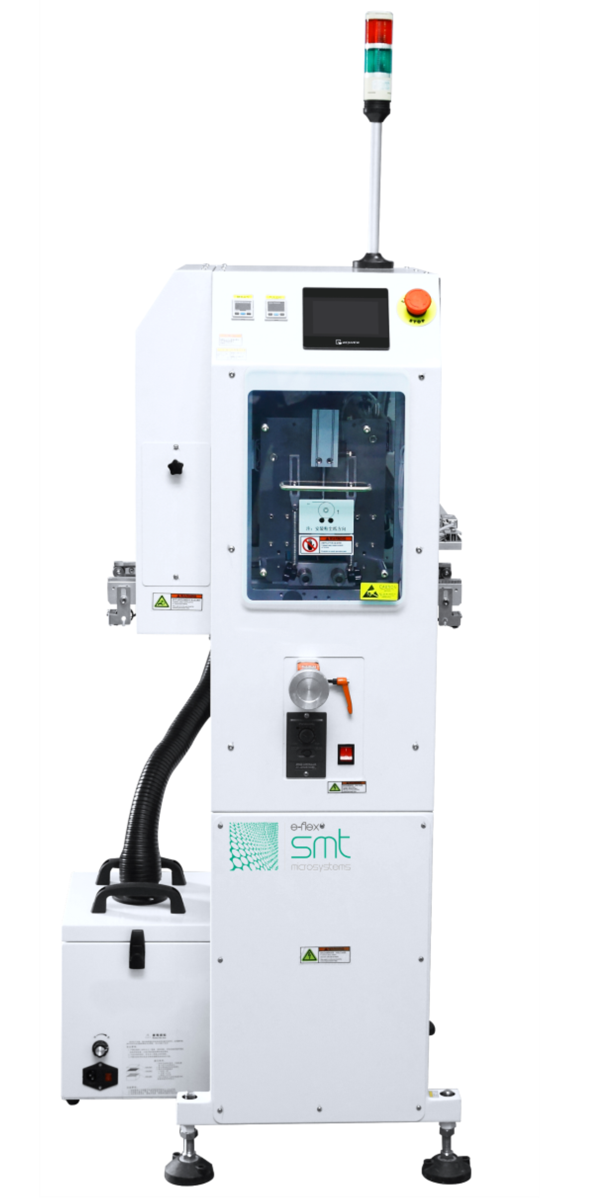

e-flex WHM-055SD3TL cleaning conveyor
This unit is used to remove the foreign objects from the PCB surface. It can also eliminate the static electricity on of PCB
Features
- Real-Time Electrostatic Monitoring System
- The system could save 30 days’ monitoring data.
- User friendly touch screen control panel
- Keyence Ionizer to remove static electricity
- Pull-out design for cleaning machine
- Conveyor height 950±30mm
- SMEMA compatible
- Three types on request: single side, double side or selectable
Options
- External brush with vacuum to absorb out dust
- Additional ionizers for better static elimination
- Automatic width adjustment
- Safety interlocker
| Model | WHM-055SD3TL | WHM-056SD3TL | WHM-057SD3TL |
| Machine dimensions | (L)550x(W)650x(H)1350 | (L)550x(W)650x(H)1350 | (L)550x(W)650x(H)1350 |
| Net weight/Shipping weight | 160 Kg | 180 Kg | 200 Kg |
| PCB size | 80 x 80mm ~ 445 x 330mm | 150 x 80mm ~ 445 x 330mm | 150 x 80mm ~ 445 x 330mm |
| Belt Type | Antistatic Flat Belt of 8mm width | ||
| Cycle Time | Approx. 8 seconds | ||
| Power Source | AC 220V,50/60Hz,1 phase | ||
| Power Consumption | 150W Max. | ||
| Air Pressure & Consume | 4-6 bar, 10 l/min Max. | ||
| PCB Thickness | 0.6-3mm Max. 4mm | ||
| Conveyor Speed | 0.5-20m/min or specify | ||
