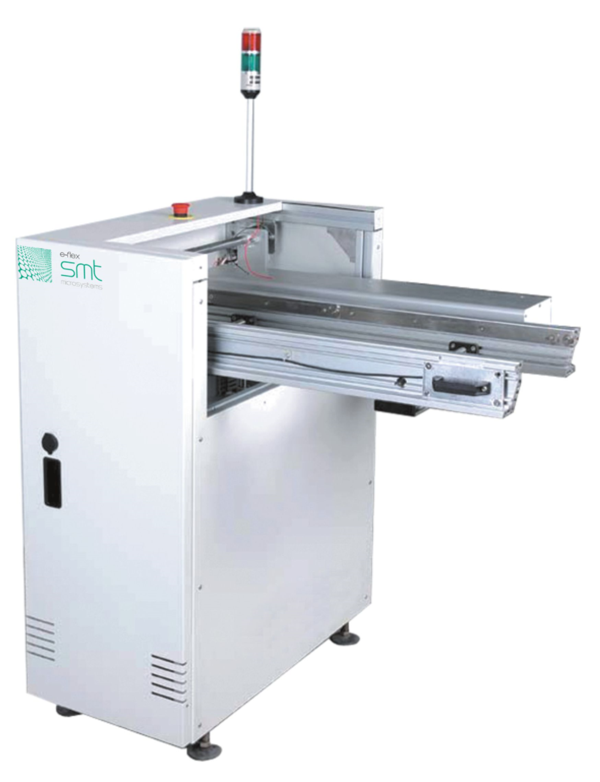

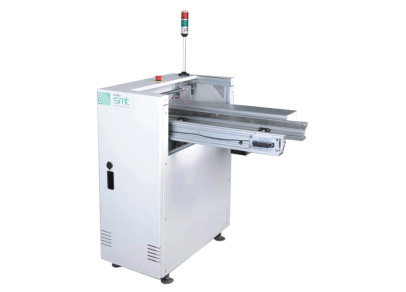

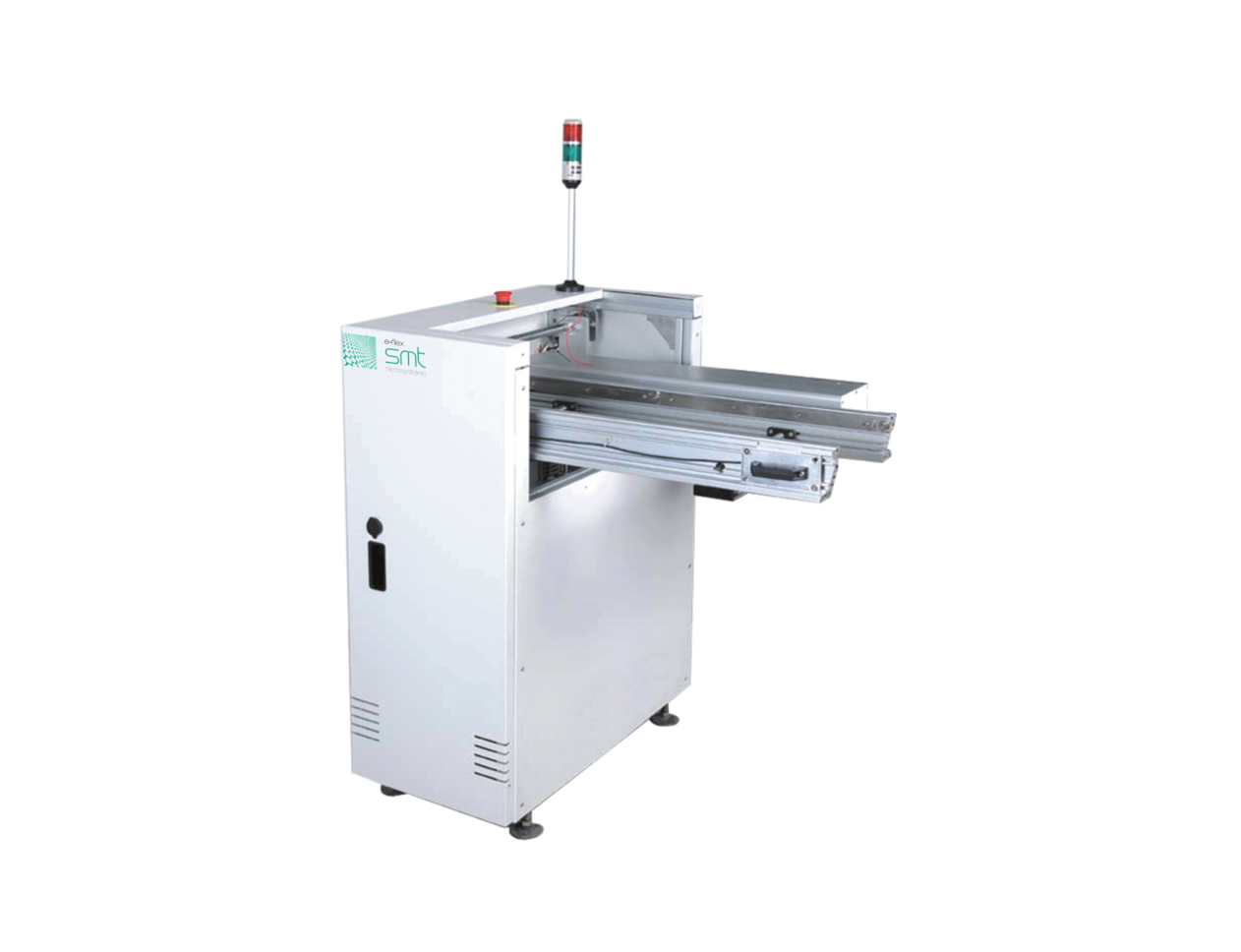

e-flex WHM-021SD3BM manual lifting conveyor
This unit is used to allow passage across the line when required.
We also have hybrid versions for all our series of standard conveyors. The look is between a standard and a high eng ones, with aluminum finishings, and tough a bit more expensive than the standard ones, it can give a nicer image to your SMT line as a whole. Feel free to inquire for details about this type of conveyors.
Features
- Lowering & lifting of the gate conveyor is done manually
- Safety sensor installed to enhance safety
- 650mm passage way, or specify
- Variable speed control
- Conveyor height 950±30mm
- SMEMA compatible
Options
- High-end rail
- ESD Covers anti-dust
- Touch screen
- High-Clearance on request
- Motorized/Automatic width adjustment
- Choice of different belt width and chain transport system
| Model | WHM-021SD3BM | WHM-021SD3BL | WHM-021SD3BXL |
| Machine dimensions | (L)1000x(W)720x(H)1210 | (L)1000x(W)800x(H)1310 | (L)1000x(W)980x(H)1310 |
| Net weight/Shipping weight | 140 Kg | 160 Kg | 280 Kg |
| PCB size | 50 x 50mm ~ 330 x 250mm | 50 x 50mm ~ 445 x 330mm | 50 x 50mm ~ 530 x 460mm |
| Internal belts Type | Antistatic Flat Belt of 3mm width | ||
| Cycle Time | Approx. 6 seconds | ||
| Power Source | AC 220V,50/60Hz,1 phase | ||
| Power Consumption | 100W Max. | ||
