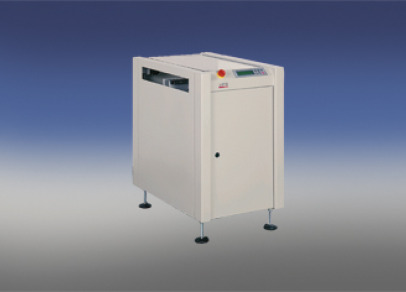

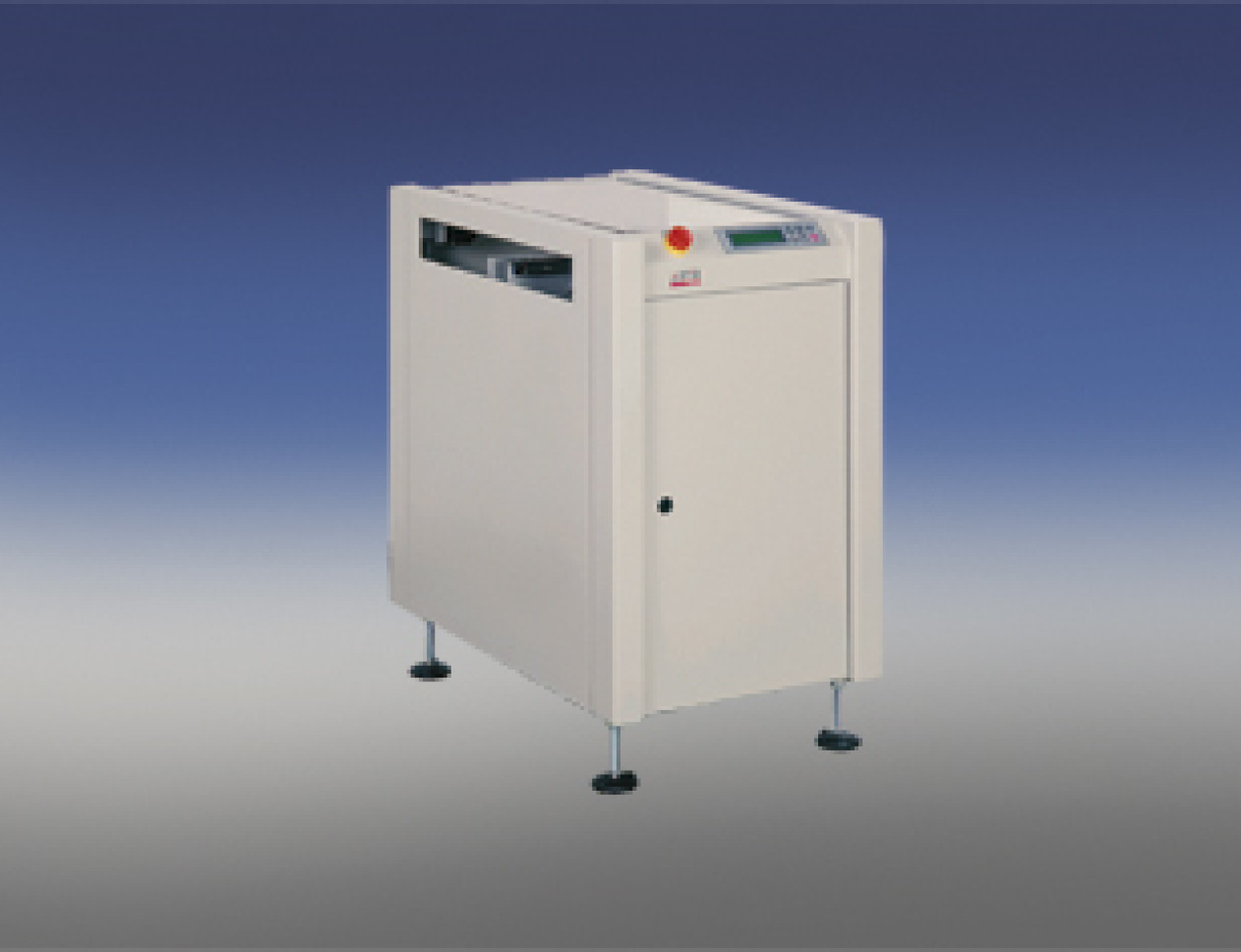

ASYS VEGO Dynamic STM 03D / Shuttle module for lateral displacement of modules within dual lane system
The STM 03D Shuttle module is created to space out PCB's in SMD production lines within a dual lane system. Incoming PCB's are taken over by the integrated conveyor segment, moved laterally and handed over to the next machine. The takeover and handover positions are freely programmable.
Features
Stepper motor with positioning control
Programmable handover-/ takeover positions
Flexible PCB width
Sorting function
Different travel distances available
Different set-up modes
Handover and takeover configurable on 4 positions
Traveling speed up to 400 mm/sec.
Appropriate for all common dual lane systems on the market
| Machine Configuration | 1 | 2 | 2.1 | 3 |
| Transport height
Max. transport width Interface Travel distance Transfer direction Operating side Fixed rail |
850mm ± 50mm
216 mm SMEMA, Siemens 251 mm from left to right Front of the machine Front of the machine |
850mm ± 50mm
460mm SMEMA, Siemens max. 430 mm from left to right Front of the machine Front of the machine |
850mm ± 50mm
250mm SMEMA, Siemens max. 636 mm from left to right Front of the machine Front of the machine |
850mm ± 50mm
460mm SMEMA, Siemens max. 636 mm from left to right Front of the machine Front of the machine |
| Panel Dimensions | ||||
| Panel length
Panel width Panel thickness Component clearance Panel weight |
70 to 460 mm
50 to 216 mm 0.8 to 4.5 mm ± 40mm to 3 kg |
70 to 460 mm
50 to 460 mm 0.8 to 4.5 mm ± 40mm to 3 kg |
70 to 460 mm
50 to 250 mm 0.8 to 4.5 mm ± 40mm to 3 kg |
70 to 460 mm
50 to 460 mm 0.8 to 4.5 mm ± 40mm to 3 kg |
| Installation Requirements | ||||
| Power supply
Power supply system Power consumption |
230V / 115V, 50 / 60
Hz, ± 10% L1 + N + PE 0.2kW |
230V / 115V, 50 / 60
Hz, ± 10% L1 + N + PE 0.2kW |
230V / 115V, 50 / 60
Hz, ± 10% L1 + N + PE 0.2kW |
230V / 115V, 50 / 60
Hz, ± 10% L1 + N + PE 0.2kW |
| Machine Description | ||||
| Length x Width x Height
Noise Level |
540 x 885 x 960 mm
< 75 dB |
540 x 1300 x 960 mm
< 75 dB |
540 x 1300 x 960 mm
< 75 dB |
540 x 1500 x 960 mm
< 75 dB |
