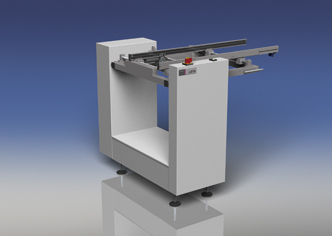

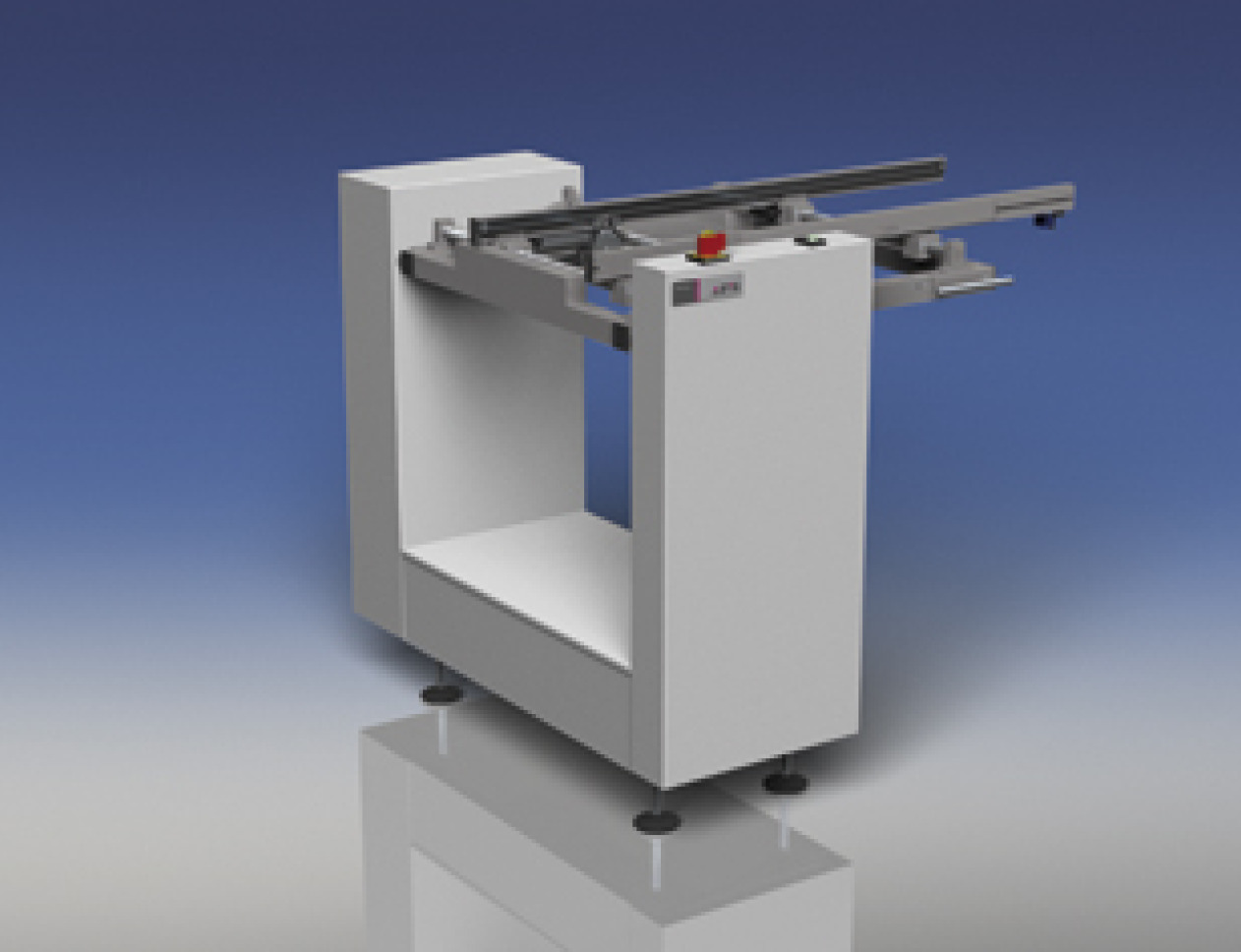

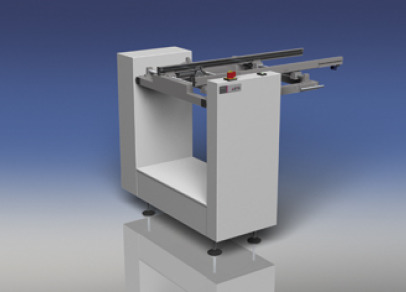

ASYS VEGO Compact BLG 01 / Lift Gate

The Lift Gate is a transport conveyor that can create an opening in a production line. The conveyor segment can be hinged open by the operator and has to be closed manually again. The opening is 845 mm wide. The powder coated steel frame ensures process stability and excellent durability.

Technical specifications

Machine Configuration
Transport height Max. transport width Pass through width Interface Transfer direction Operating side Fixed rail	950mm ± 50mm 460mm 845mm SMEMA from left to right Front of the machine Front of the machine
Panel Dimensions
Panel length Panel width Panel thickness Component clearance Panel weight	70 to 460 mm 50 to 460 mm 0.8 to 4.5 mm ± 40mm to 3 kg
Installation Requirements
Power supply Power supply system Power consumption	230 V / 115 V, 50 / 60 Hz, ± 10% L1 + N + PE 0.14 kW
Machine Description
Length x Width x Height Net weight Noise Level	1250 x 1072 x 966 mm 130 kg < 75 dB
