- ASYS VEGO Compact BFS 01 / Flip Station
ASYS VEGO Compact BFS 01 / Flip Station

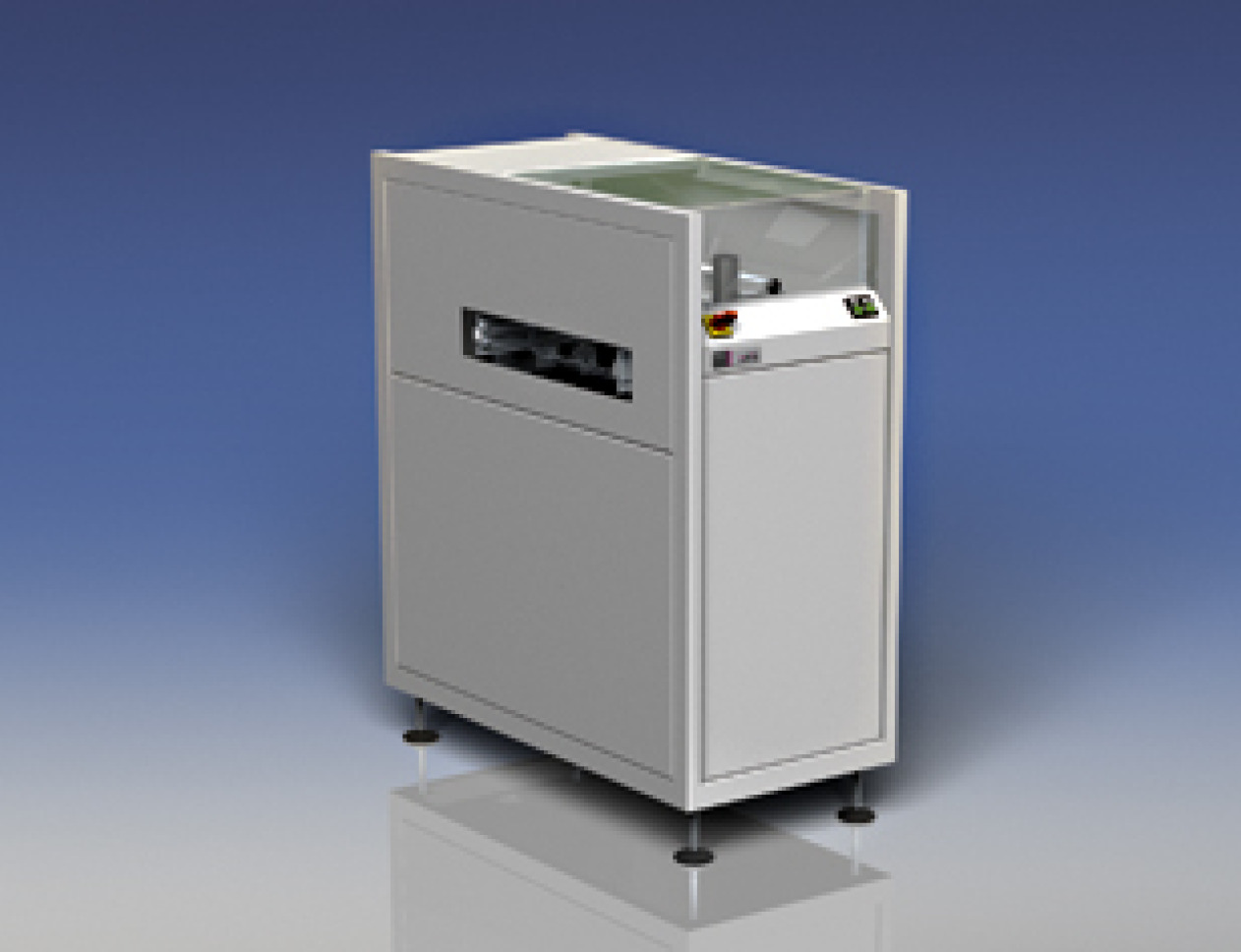

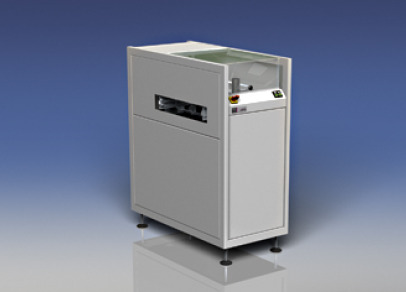

The Flip Station is used in SMD production lines to invert PCBs 180°. This flip function will change the leading and trailing edge. The incoming PCB is stopped by a stopper on the conveyor system and flipped over by a rotating mechanism. After completion of the process the PCB is offloaded to the downstream system. The powder coated steel frame ensures process stability and excellent durability.
Features
180° Flip function
Pass through mode
Start / Stop push button
Anti-static conveyor belts
SMEMA Interface
| Machine Configuration | |
| Transport height
Max. transport width Interface Transfer direction Operating side Fixed rail |
950mm ± 50mm
460mm SMEMA from left to right Front of the machine Front of the machine |
| Panel Dimensions | |
| Panel length
Panel width Panel thickness Component clearance Panel weight |
70 to 460 mm
50 to 460 mm 0.8 to 4.5 mm ± 40mm to 3 kg |
| Installation Requirements | |
| Power supply
Power supply system Power consumption Air supply Air consumption |
230 V / 115 V, 50 / 60 Hz, ± 10%
L1 + N + PE 0.1 kW 6 bar 5 Nl/min |
| Machine Description | |
| Length x Width x Height
Net weight Noise Level |
530 x 1100 x 1284 mm
160 kg < 75 dB |
